Smartibot

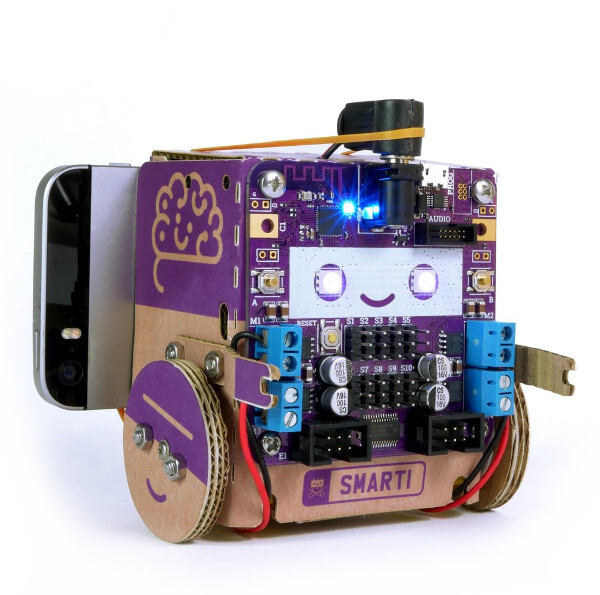

The world’s first Artificial Intelligence enabled cardboard robot that you build yourself.

Smartibot works with your smartphone, meaning you can use your mobile as a remote control, or by attaching it to your robot, as it’s brain.

Firmware binaries can be found in:

• the Download page - either from the list of firmwares, or a downloadable ZIP.
• the binaries folder (current version)
• the automatic Travis Builds (cutting edge builds)

To update your firmware, follow the instructions below

Contents

• Using
• Buttons
• Motors
• LEDs
• Servo outputs
• Display board
• Distance board
• Reference
• Tutorials
• Firmware Updates

Using

Smartibot can be used like any other Espruino Bluetooth LE device, with full access to the NRF class for BLE Functionality.

Check out the Getting Started Guide.

Buttons

There are two built-in variables for buttons, BTN1 (Button A) and BTN2 (Button B).

These can be read using BTN1.read() or digitalRead(BTN1) (the two commands are identical), or you can be notified when a button changes state:

setWatch(function(e) {
  if (e.state) print("Button pressed");
  else print("Button released");
}, BTN1, {repeat:true, edge:"both"});

The code above will call the function when the button is pressed and when it is released. You can remove edge:"both" completely or use edge:"rising" to be notified only when the button is pressed, or cal use edge:"falling" to be notified only when it is released.

NOTE: On the Smartibot build that ships with KickStarter devices, the value from BTN1.read() is inverted (true when released, false when pressed).

Motors

There are 4 motor outputs which can be controlled using require("Smartibot").setMotor(motor, value).

value is a number between -1 (full reverse) and 1 (full forward).

var smarti = require("Smartibot");

smarti.setMotor(2, 1); // run motor 2 forward at full speed
smarti.setMotor(1, -0.5); // run motor 1 in reverse at half speed

LEDs

There is one blue LED controllable using LED.write(..), however the left and right 'eyes' must be controlled using the require("Smartibot").setLEDs(left, right) command:

var smarti = require("Smartibot");

// Set left LED to RED, right LED to GREEN
smarti.setLEDs([255,0,0], [0,255,0]);

NOTE: On the Smartibot build that ships with KickStarter devices, the single blue LED is inverted (true for off, false for on).

Servo outputs

To control servos, use the require("Smartibot").setServo(servo, value).

value is a number between 0 and 100.

var smarti = require("Smartibot");

smarti.setServo(1, 50); // Set servo 1 to midpoint

Display board

Plug the display into E1. Calling g = require("Smartibot-display").connect(smarti.E1) will return an instance of Graphics which you can then use. It is 16 pixels wide, 9 pixels high, and 8 bits per pixel.

When you need to display something, call g.flip() to send it to the screen:

var smarti = require("Smartibot");
var g = require("Smartibot-display").connect(smarti.E1);

// Clear the screen
g.clear();
g.setColor(127); // set brightness - 0..255
// Draw something!
g.drawRect(0,0,15,8);
g.drawString("Hi",2,2);
// Send what we drew to the screen
g.flip();

Check out Graphics for full details on how to use Graphics and add your own images.

Distance board

Plug the board into E1. Calling require("Smartibot-distance").connect(smarti.E1); returns an object with the following entries:

• dist.getLeft() returns the distance from the left sensor in millimeters
• dist.getRight() returns the distance from the left sensor in millimeters
• dist.getGesture() returns "left"/"right"/"up"/"down" is a gesture was found, or undefined if not.
• dist.gesture is an instance of APDS9960 for direct access to the gesture sensor
• dist.left/dist.right are instances of VL53L0X for direct access to the laser sensors

var smarti = require("Smartibot");
var dist = require("Smartibot-distance").connect(smarti.E1);

setInterval(function() {
  // try and avoid obstacles if less than 10cm away
  if (dist.getLeft() < 100) smarti.setMotor(1,0);
  else smarti.setMotor(1,1);
  if (dist.getRight() < 100) smarti.setMotor(2,0);
  else smarti.setMotor(2,1);

  // if a gesture was found, output what it was
  var gesture = dist.getGesture();
  if (gesture) console.log(gesture);
}, 100);

Reference

// Set LEDs - expects two 3-element arrays with each elemnt between 0 and 255 : [R,G,B], [R,G,B]
exports.setLEDs = function (l, r) { ... }

// Set motors 1..4 with a value between -1 and 1
exports.setMotor = function (M, S) { ... }

// Set servos 1..10 with a value 0..100
exports.setServo = function (num, val) { ... }

Tutorials

First, it's best to check out the Getting Started Guide

(No tutorials are available yet)

Tutorials using just Bluetooth LE:

BTHome Library Bluetooth LE Printers Bluetooth LE Emoji Advertising Battery Monitor LEGO Power Functions Clone Remote Control (Mould King M-0006 / Kaiyu / Bandra / AKOGD / MayD / etc) Tilt Hydrometer Repeater Quick Start (Bluetooth LE) BLE Advertising with Node.js/Python/C#/Android Automatic Data Download Puck.js to GCP BigQuery & Data Studio Stream from Puck.js to AWS IOT Core & SNS Email Bluetooth LE UARTs (NUS) Bluetooth LE HID Keyboards Bluetooth LE Security and Access Control Bluetooth LE MIDI Web Bluetooth on Linux Bluetooth Time Setter Using Web Bluetooth with Espruino Bluetooth LE and If This Then That UART.js Library iBeacons Eddystone Beacons Bluetooth LE and Node-RED with MQTT Bluetooth Music Controller Controlling Bluetooth Lights with Puck.js Bluetooth LE HTTP Proxies Exercise Machine controlled Video BLE Communications About Bluetooth LE (BLE) Puck.js with SMS control Pixl.js SMS Remote Monitoring Web IDE on a Raspberry Pi Puck.js Bluetooth with the Graphical Editor Controlling Other BLE Espruino Devices Pixl.js Simple Logger Pixl.js Multiplayer Pong Game Pixl.js Bluetooth to Ethernet MQTT Bridge BLE Characteristic Scan LED BLE Library Bluefruit LE app interface

Tutorials using Bluetooth LE and functionality that may not be part of Smartibot:

Water Level Monitor Puck.js Vibration Sensor DIY Smart Meter BTHome Door Sensor for Home Assistant BTHome and Home Assistant Setup Pixl.js Wireless Temperature Display Turning an Espruino Puck.js Into a Universal Presentation Clicker Interfacing to a PC Controlling Espruino from Tensorflow on the Desktop Bookmarklets with Web Bluetooth Bangle.js Data Streaming Puckmote - Universal Remote Control IoT for Kitchen Gardens Time Machine Retro-Inspired Smartwatch Talos, Keeping You Safe During Your Commute Bluetooth Energy Usage Monitor Electric Skateboard Controller Wooden Bluetooth Remote for Lego Duplo Train Puck.js Control from Android using DroidScript Ikea Eneby Speaker Controller Pixl.js Wireless Weather Station Temperature Controlled Night Light with Puck.js Infrared Record and Playback with Puck.js Door Controlled Light with Puck.js Freezer Alarm

Firmware Updates

For this you'll need an Android or Apple phone or tablet.

• Power on your Smartibot, while holding down Button A
• Release Button A less than 2 seconds after power on
• Follow the Puck.js instructions for updating firmware using the NRF Connect app on your phone (download the smartibot firmware file, not the puckjs one).
